/* Code generated by Beremiz c_ext confnode */

#ifdef ARDUINO_PLATFORM

#include <stdio.h>
#include "iec_types_all.h"

/* User variables reference */
extern "C" __IEC_STRING_t CONFIG0__SERIALMSG;
#define SerialMSG CONFIG0__SERIALMSG.value
extern "C" __IEC_BOOL_t CONFIG0__PRINTMSG;
#define PrintMSG CONFIG0__PRINTMSG.value

/* User sketch */
// This is the Arduino side of the project. The functions sketch_setup() and
// sketch_loop() provide the same functionality of the setup() and loop()
// functions of a regular Arduino sketch. On top of this code editor there is a
// variable table. You can add variables there that are shared between the
// arduino code and the PLC code. Since they are shared, you can, for example,
// read a sensor on the arduino sketch and use the reading in a PLC program.
// On the PLC side you must declare the same variable with the class "external"
// before being able to use it in your program.

// This Arduino sketch implementation is compatible with virtually every library
// or code you can possibly run on the regular Arduino IDE. You can create your
// own functions and also #include external libraries (as long as they are also
// installed on your Arduino IDE). The only catch is that your sketch_loop()
// function cannot block (long while loop or delays), or else your PLC code will
// block as well.

// Notes about this particular demo: Since this demo uses the serial port, you
// cannot enable Modbus Serial on your project, otherwise it will conflict with
// the messages being printed from this sketch. Also, this sketch shares a
// STRING with the PLC side. This is not a regular c-string, it is an IEC 61131
// STRING. Variables shared between the PLC and Arduino sketch are always IEC
// 61131 variables. For normal datatypes like INT, REAL, DINT, etc, there are
// direct equivalents in C (int16_t, float and int32_t respectively), so you
// shouldn't have any problems with those. An IEC STRING however is a more
// complex structure. You can typecast an IEC STRING into a c-string by using
// (char *)STRING.body as shown in the example below.

void sketch_setup()
{
    Serial.begin(115200);
    Serial.println("Hello World! I'm starting now...");
}

void sketch_loop()
{
    if (PrintMSG)
    {
        Serial.println((char *)SerialMSG.body);
    }
}
#endif

void LOGGER_init__(LOGGER *data__, BOOL retain) {
  __INIT_VAR(data__->EN,__BOOL_LITERAL(TRUE),retain)
  __INIT_VAR(data__->ENO,__BOOL_LITERAL(TRUE),retain)
  __INIT_VAR(data__->TRIG,__BOOL_LITERAL(FALSE),retain)
  __INIT_VAR(data__->MSG,__STRING_LITERAL(0,""),retain)
  __INIT_VAR(data__->LEVEL,LOGLEVEL__INFO,retain)
  __INIT_VAR(data__->TRIG0,__BOOL_LITERAL(FALSE),retain)
}

// Code part
void LOGGER_body__(LOGGER *data__) {
  // Control execution
  if (!__GET_VAR(data__->EN)) {
    __SET_VAR(data__->,ENO,,__BOOL_LITERAL(FALSE));
    return;
  }
  else {
    __SET_VAR(data__->,ENO,,__BOOL_LITERAL(TRUE));
  }
  // Initialise TEMP variables

  if ((__GET_VAR(data__->TRIG,) && !(__GET_VAR(data__->TRIG0,)))) {
    #define GetFbVar(var,...) __GET_VAR(data__->var,__VA_ARGS__)
    #define SetFbVar(var,val,...) __SET_VAR(data__->,var,__VA_ARGS__,val)

   LogMessage(GetFbVar(LEVEL),(char*)GetFbVar(MSG, .body),GetFbVar(MSG, .len));

    #undef GetFbVar
    #undef SetFbVar
;
  };
  __SET_VAR(data__->,TRIG0,,__GET_VAR(data__->TRIG,));

  goto __end;

__end:
  return;
} // LOGGER_body__()





static inline STRING __ARDUINOPRINT_MOVE__STRING__STRING1(BOOL EN,
  STRING IN,
  ARDUINOPRINT *data__)
{
  STRING __res;
  BOOL __TMP_ENO = __GET_VAR(data__->_TMP_MOVE14_ENO,);
  __res = MOVE__STRING__STRING(EN,
    &__TMP_ENO,
    IN);
  __SET_VAR(,data__->_TMP_MOVE14_ENO,,__TMP_ENO);
  return __res;
}

void ARDUINOPRINT_init__(ARDUINOPRINT *data__, BOOL retain) {
  __INIT_LOCATED(BOOL,__QX0_3,data__->BLINK_LED,retain)
  __INIT_LOCATED_VALUE(data__->BLINK_LED,__BOOL_LITERAL(FALSE))
  TON_init__(&data__->TON0,retain);
  TOF_init__(&data__->TOF0,retain);
  __INIT_EXTERNAL(STRING,SERIALMSG,data__->SERIALMSG,retain)
  __INIT_EXTERNAL(BOOL,PRINTMSG,data__->PRINTMSG,retain)
  R_TRIG_init__(&data__->R_TRIG1,retain);
  __INIT_VAR(data__->_TMP_MOVE14_ENO,__BOOL_LITERAL(FALSE),retain)
  __INIT_VAR(data__->_TMP_MOVE14_OUT,__STRING_LITERAL(0,""),retain)
}

// Code part

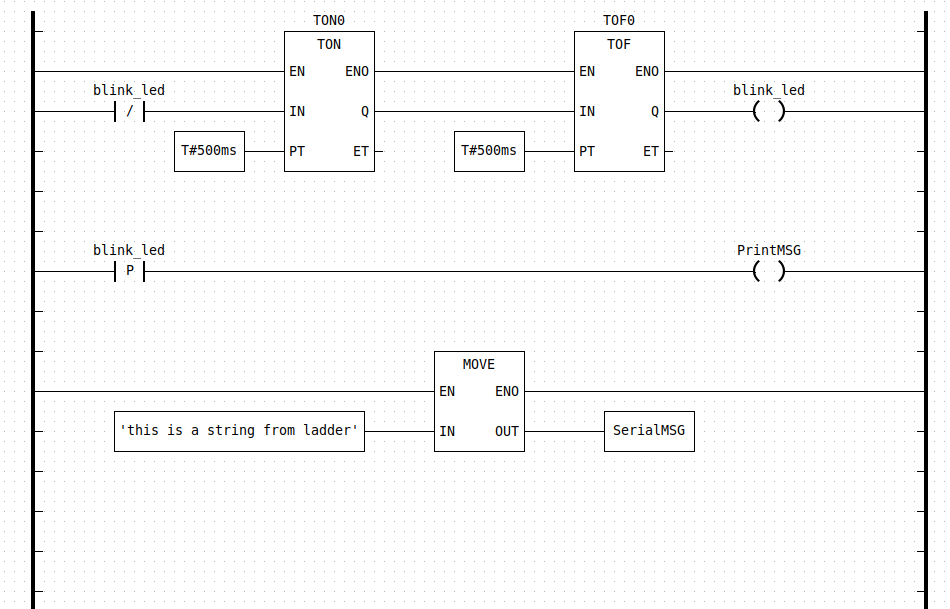

void ARDUINOPRINT_body__(ARDUINOPRINT *data__) {
  // Initialise TEMP variables

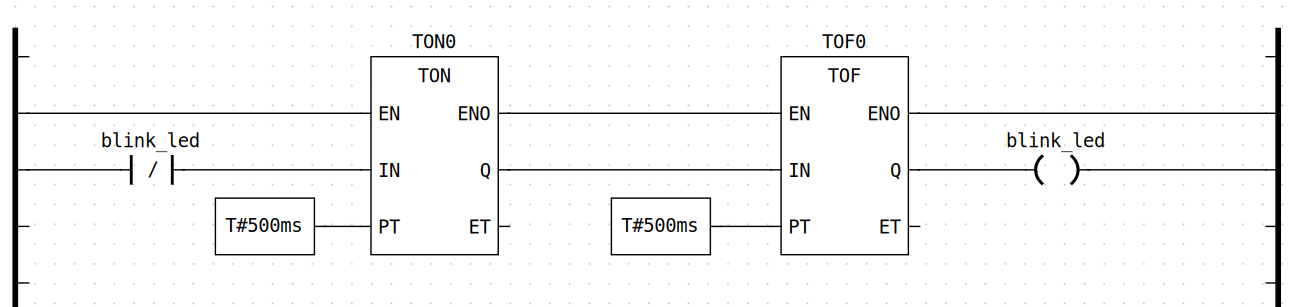

  __SET_VAR(data__->TON0.,EN,,__BOOL_LITERAL(TRUE));
  __SET_VAR(data__->TON0.,IN,,!(__GET_LOCATED(data__->BLINK_LED,)));
  __SET_VAR(data__->TON0.,PT,,__time_to_timespec(1, 500, 0, 0, 0, 0));
  TON_body__(&data__->TON0);
  __SET_VAR(data__->TOF0.,EN,,__GET_VAR(data__->TON0.ENO,));
  __SET_VAR(data__->TOF0.,IN,,__GET_VAR(data__->TON0.Q,));
  __SET_VAR(data__->TOF0.,PT,,__time_to_timespec(1, 500, 0, 0, 0, 0));
  TOF_body__(&data__->TOF0);
  __SET_LOCATED(data__->,BLINK_LED,,__GET_VAR(data__->TOF0.Q,));

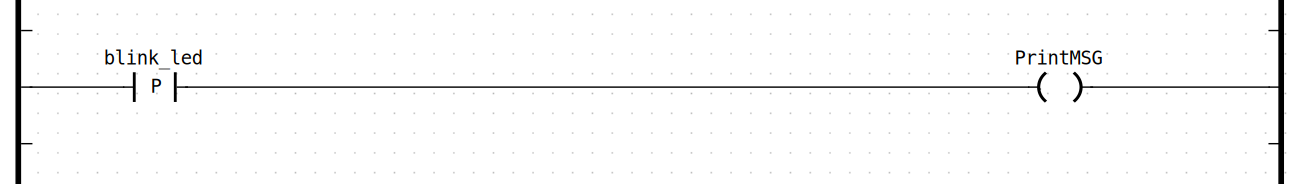

  __SET_VAR(data__->R_TRIG1.,CLK,,__GET_LOCATED(data__->BLINK_LED,));
  R_TRIG_body__(&data__->R_TRIG1);
  __SET_EXTERNAL(data__->,PRINTMSG,,__GET_VAR(data__->R_TRIG1.Q,));

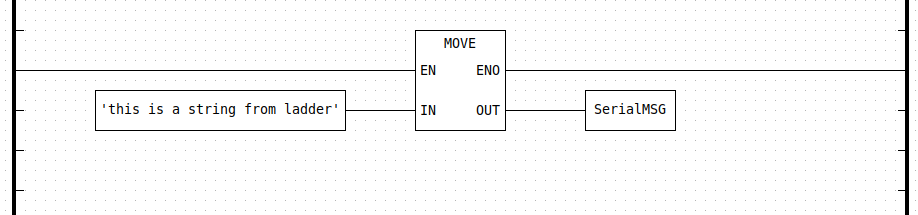

  __SET_VAR(data__->,_TMP_MOVE14_OUT,,__ARDUINOPRINT_MOVE__STRING__STRING1(
    (BOOL)__BOOL_LITERAL(TRUE),
    (STRING)__STRING_LITERAL(28,"this is a string from ladder"),
    data__));
  if (__GET_VAR(data__->_TMP_MOVE14_ENO,)) {
    __SET_EXTERNAL(data__->,SERIALMSG,,__GET_VAR(data__->_TMP_MOVE14_OUT,));
  };

  goto __end;

__end:
  return;
} // ARDUINOPRINT_body__()
